¿Cómo? ¿Desinstalar un operador y retirar todos los recursos creados por el mismo?. Además, ¿el mismísimo operador de Service Mesh?, pero si está de moda usar Istio.
Existen situaciones en las que es necesario o deseable retirar el operador de Service Mesh, por ejemplo, si se ha probado y no se ajusta a las necesidades que se desean cubrir o si no es el producto adecuado para resolver el problema original que se intentó abordar.
En el caso que se plantea, se decide retirar OpenShift Service Mesh para poder desplegar otra Mesh de otro proveedor, ya que no es compatible tener Istio desplegado en el mismo clúster con la nueva Mesh.

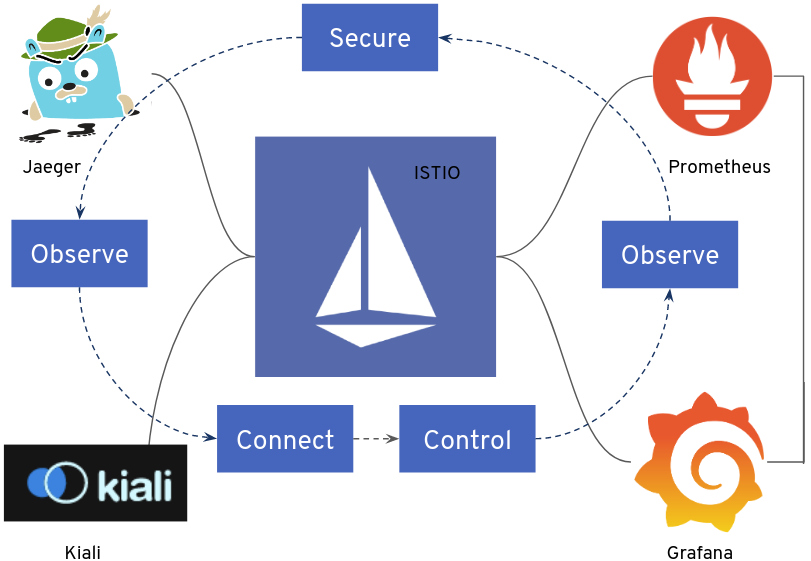

Eliminaremos todos los recursos que componen Red Hat OpenShift Service Mesh.
Pasos que realizaremos
- Desinstalaremos los operadores
- Service Mesh
- Jaeger
- Kiali
- Eliminaremos el daemonset del CNI driver
- Limpiaremos el namespace de istio-system
- Eliminamos todos los CRDs usados por el stack de Service Mesh
- Eliminamos la Service Account de Istio y su ConfigMap
Comprobamos la existencia de los operadores
Comprobamos que tanto la suscripción, los installPlan aprobados y los CSV (Cluster Service Version) están presentes en el clúster.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| $ oc get subscription.operators -n openshift-distributed-tracing
NAME PACKAGE SOURCE CHANNEL
jaeger-product jaeger-product redhat-operator-index stable
$ oc get subscription.operators -n openshift-operators
NAME PACKAGE SOURCE CHANNEL
kiali-ossm kiali-ossm redhat-operator-index stable
servicemeshoperator servicemeshoperator redhat-operator-index stable
$ oc get ip -n openshift-distributed-tracing
NAME CSV APPROVAL APPROVED
install-4wwcv jaeger-operator.v1.29.1 Automatic true
$ oc get ip -n openshift-operators
NAME CSV APPROVAL APPROVED
install-67mcl kiali-operator.v1.36.7 Automatic true
install-fvbpg servicemeshoperator.v2.1.1 Automatic true
install-zrlvj servicemeshoperator.v2.1.1 Automatic true
$ oc get csv
NAME DISPLAY VERSION REPLACES PHASE
elasticsearch-operator.5.1.8-17 OpenShift Elasticsearch Operator 5.1.8-17 Succeeded
jaeger-operator.v1.29.1 Red Hat OpenShift distributed tracing platform 1.29.1 Succeeded
kiali-operator.v1.36.7 Kiali Operator 1.36.7 kiali-operator.v1.36.6 Succeeded
servicemeshoperator.v2.1.1 Red Hat OpenShift Service Mesh 2.1.1-0 servicemeshoperator.v2.1.0 Succeeded
|
Comprobamos que los pods de los operadores están en ejecución en el clúster.
1
2
3
4
5
6
7
8
9
| $ oc get po -n openshift-operators
NAME READY STATUS RESTARTS AGE
istio-node-grb7b 4/4 Running 0 225d
istio-node-k9rxs 4/4 Running 0 225d
istio-node-trgp9 4/4 Running 0 225d
istio-node-zwn2j 4/4 Running 0 225d
istio-operator-7dd69667cc-hd6vd 1/1 Running 0 62d
jaeger-operator-6654c85ff8-bvkwj 2/2 Running 4 62d
kiali-operator-77495b847d-ssvm4 1/1 Running 0 62d
|
Eliminamos los operadores del stack de Service Mesh
Borramos las suscripciones a los operadores de jaeger, kiali y Service Mesh, tras el borrado, comprobamos que se han eliminado de forma correcta del clúster.
1
2
3
4
5
6
| $ oc delete subscription.operators jaeger-product -n openshift-distributed-tracing
subscription.operators.coreos.com "jaeger-product" deleted
$ oc delete subscription.operators kiali-ossm servicemeshoperator -n openshift-operators
subscription.operators.coreos.com "kiali-ossm" deleted
subscription.operators.coreos.com "servicemeshoperator" deleted
|
Aún eliminando las suscripciones, podemos ver que los pods que forman los operadores continúan en ejecución, esto es normal, ya que siguen presentes en el clúster los CSV (Cluster Service Version) de esos operadores.
1
2
3
4
5
6
7
8
9
| $ oc get po -n openshift-operators
NAME READY STATUS RESTARTS AGE
istio-node-grb7b 4/4 Running 0 225d
istio-node-k9rxs 4/4 Running 0 225d
istio-node-trgp9 4/4 Running 0 225d
istio-node-zwn2j 4/4 Running 0 225d
istio-operator-7dd69667cc-hd6vd 1/1 Running 0 62d
jaeger-operator-6654c85ff8-bvkwj 2/2 Running 4 62d
kiali-operator-77495b847d-ssvm4 1/1 Running 0 62d
|
Borramos los CSV (Cluster Service Version) asociados a cada operador y comprobamos su correcta eliminación
1
2
3
4
5
6
7
8
| $ oc delete csv jaeger-operator.v1.29.1 servicemeshoperator.v2.1.1 kiali-operator.v1.36.7
clusterserviceversion.operators.coreos.com "jaeger-operator.v1.29.1" deleted
clusterserviceversion.operators.coreos.com "servicemeshoperator.v2.1.1" deleted
clusterserviceversion.operators.coreos.com "kiali-operator.v1.36.7" deleted
$ oc get csv
NAME DISPLAY VERSION REPLACES PHASE
elasticsearch-operator.5.1.8-17 OpenShift Elasticsearch Operator 5.1.8-17 Succeeded
|
Nota: En este caso, el operador de ElasticSearch no se elimina ya que se continuará usando para el stack de Logging de la plataforma.
Ahora ya podemos ver que los pods que formaban los operadores ya no están en ejecución en el clúster, por lo que ya no podrán atender a sus propios recursos (CRs) y no aplicarán configuraciones o reconciliarán las existentes para el stack de Service Mesh.
1
2
3
4
5
6
| $ oc get po -n openshift-operators
NAME READY STATUS RESTARTS AGE
istio-node-grb7b 4/4 Running 0 225d
istio-node-k9rxs 4/4 Running 0 225d
istio-node-trgp9 4/4 Running 0 225d
istio-node-zwn2j 4/4 Running 0 225
|
NOTA: Si existe en el clúster más de una Mesh desplegada se pueden recibir errores al borrar el control plane por existir validatingwebhookconfiguration y mutatingwebhookconfigurations duplicados que será necesario eliminarlos para conseguir que el Service Mesh Control Plane pueda ser eliminado de forma correcta.
Borrado de los Validatingwebhookconfiguration y mutatingwebhookconfigurations
Comprobamos su existencia en el clúster y los eliminamos.
1
2
3
4
5
6
7
8
9
10
11
| $ oc get validatingwebhookconfiguration,mutatingwebhookconfigurations |grep openshift-operators.servicemesh
validatingwebhookconfiguration.admissionregistration.k8s.io/openshift-operators.servicemesh-resources.maistra.io 3 225d
mutatingwebhookconfiguration.admissionregistration.k8s.io/openshift-operators.servicemesh-resources.maistra.io 2 225d
$ oc delete validatingwebhookconfiguration/openshift-operators.servicemesh-resources.maistra.io
validatingwebhookconfiguration.admissionregistration.k8s.io "openshift-operators.servicemesh-resources.maistra.io" deleted
$ oc delete mutatingwebhookconfiguration/openshift-operators.servicemesh-resources.maistra.io
mutatingwebhookconfiguration.admissionregistration.k8s.io "openshift-operators.servicemesh-resources.maistra.io" deleted
|
Comprobamos que han sido borrados completamente.
1
| $ oc get validatingwebhookconfiguration,mutatingwebhookconfigurations |grep openshift-operators.servicemesh
|
Borrado del Admission controller y del driver CNI de Istio
Comprobamos y eliminamos el servicio asociado a Maistra.
1
2
3
4
5
6
7
8
9
| $ oc get svc maistra-admission-controller -n openshift-operators
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
maistra-admission-controller ClusterIP 172.30.178.219 <none> 443/TCP 226d
$ oc delete svc maistra-admission-controller -n openshift-operators
service "maistra-admission-controller" deleted
$ oc get svc maistra-admission-controller -n openshift-operators
Error from server (NotFound): services "maistra-admission-controller" not found
|
Eliminamos el DaemonSet que se encontraba aún en ejecución.
1
2
3
4
5
6
7
8
9
| $ oc get ds -lmaistra-version -n openshift-operators
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
istio-node 4 4 4 4 4 beta.kubernetes.io/os=linux 225d
$ oc delete ds -lmaistra-version -n openshift-operators
daemonset.apps "istio-node" deleted
$ oc get ds -lmaistra-version -n openshift-operators
No resources found in openshift-operators namespace.
|
Borrado de los roles y bindings asociados al stack de Service Mesh
1
2
3
4
5
6
7
8
9
10
11
12
| $ oc get clusterrole/istio-admin clusterrole/istio-cni clusterrolebinding/istio-cni
NAME CREATED AT
clusterrole.rbac.authorization.k8s.io/istio-admin 2022-07-25T15:33:22Z
clusterrole.rbac.authorization.k8s.io/istio-cni 2022-07-25T15:33:22Z
NAME ROLE AGE
clusterrolebinding.rbac.authorization.k8s.io/istio-cni ClusterRole/istio-cni 225d
$ oc delete clusterrole/istio-admin clusterrole/istio-cni clusterrolebinding/istio-cni
clusterrole.rbac.authorization.k8s.io "istio-admin" deleted
clusterrole.rbac.authorization.k8s.io "istio-cni" deleted
clusterrolebinding.rbac.authorization.k8s.io "istio-cni" deleted
|
1
2
3
4
5
6
7
8
| $ oc get clusterrole istio-view istio-edit
NAME CREATED AT
istio-view 2022-07-25T15:33:22Z
istio-edit 2022-07-25T15:33:22Z
$ oc delete clusterrole istio-view istio-edit
clusterrole.rbac.authorization.k8s.io "istio-view" deleted
clusterrole.rbac.authorization.k8s.io "istio-edit" deleted
|
1
2
3
4
5
6
7
8
9
10
11
12
| $ oc get clusterrole jaegers.jaegertracing.io-v1-admin jaegers.jaegertracing.io-v1-crdview jaegers.jaegertracing.io-v1-edit jaegers.jaegertracing.io-v1-view
NAME CREATED AT
jaegers.jaegertracing.io-v1-admin 2022-07-25T14:41:39Z
jaegers.jaegertracing.io-v1-crdview 2022-07-25T14:41:39Z
jaegers.jaegertracing.io-v1-edit 2022-07-25T14:41:39Z
jaegers.jaegertracing.io-v1-view 2022-07-25T14:41:39Z
$ oc delete clusterrole jaegers.jaegertracing.io-v1-admin jaegers.jaegertracing.io-v1-crdview jaegers.jaegertracing.io-v1-edit jaegers.jaegertracing.io-v1-view
clusterrole.rbac.authorization.k8s.io "jaegers.jaegertracing.io-v1-admin" deleted
clusterrole.rbac.authorization.k8s.io "jaegers.jaegertracing.io-v1-crdview" deleted
clusterrole.rbac.authorization.k8s.io "jaegers.jaegertracing.io-v1-edit" deleted
clusterrole.rbac.authorization.k8s.io "jaegers.jaegertracing.io-v1-view" deleted
|
Limpiando los CRDs asociados a Istio
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
| $ oc get crds -o name | grep '.*\.istio\.io'
customresourcedefinition.apiextensions.k8s.io/adapters.config.istio.io
customresourcedefinition.apiextensions.k8s.io/attributemanifests.config.istio.io
customresourcedefinition.apiextensions.k8s.io/authorizationpolicies.security.istio.io
customresourcedefinition.apiextensions.k8s.io/destinationrules.networking.istio.io
customresourcedefinition.apiextensions.k8s.io/envoyfilters.networking.istio.io
customresourcedefinition.apiextensions.k8s.io/gateways.networking.istio.io
customresourcedefinition.apiextensions.k8s.io/handlers.config.istio.io
customresourcedefinition.apiextensions.k8s.io/httpapispecbindings.config.istio.io
customresourcedefinition.apiextensions.k8s.io/httpapispecs.config.istio.io
customresourcedefinition.apiextensions.k8s.io/instances.config.istio.io
customresourcedefinition.apiextensions.k8s.io/peerauthentications.security.istio.io
customresourcedefinition.apiextensions.k8s.io/quotaspecbindings.config.istio.io
customresourcedefinition.apiextensions.k8s.io/quotaspecs.config.istio.io
customresourcedefinition.apiextensions.k8s.io/rbacconfigs.rbac.istio.io
customresourcedefinition.apiextensions.k8s.io/requestauthentications.security.istio.io
customresourcedefinition.apiextensions.k8s.io/rules.config.istio.io
customresourcedefinition.apiextensions.k8s.io/serviceentries.networking.istio.io
customresourcedefinition.apiextensions.k8s.io/servicerolebindings.rbac.istio.io
customresourcedefinition.apiextensions.k8s.io/serviceroles.rbac.istio.io
customresourcedefinition.apiextensions.k8s.io/sidecars.networking.istio.io
customresourcedefinition.apiextensions.k8s.io/telemetries.telemetry.istio.io
customresourcedefinition.apiextensions.k8s.io/templates.config.istio.io
customresourcedefinition.apiextensions.k8s.io/virtualservices.networking.istio.io
customresourcedefinition.apiextensions.k8s.io/workloadentries.networking.istio.io
customresourcedefinition.apiextensions.k8s.io/workloadgroups.networking.istio.io
$ oc get crds -o name | grep '.*\.istio\.io' | xargs -r -n 1 oc delete
customresourcedefinition.apiextensions.k8s.io "adapters.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "attributemanifests.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "authorizationpolicies.security.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "destinationrules.networking.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "envoyfilters.networking.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "gateways.networking.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "handlers.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "httpapispecbindings.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "httpapispecs.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "instances.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "peerauthentications.security.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "quotaspecbindings.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "quotaspecs.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "rbacconfigs.rbac.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "requestauthentications.security.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "rules.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "serviceentries.networking.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "servicerolebindings.rbac.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "serviceroles.rbac.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "sidecars.networking.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "telemetries.telemetry.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "templates.config.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "virtualservices.networking.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "workloadentries.networking.istio.io" deleted
customresourcedefinition.apiextensions.k8s.io "workloadgroups.networking.istio.io" deleted
|
Comprobamos si existe Service Mesh Member Roll
Comprobamos si existe el recuros de Service Mesh Member Roll desplegado. Si es así lo eliminaremos también.
1
2
| $ oc get smmr -A
No resources found
|
En este caso no se encontraba desplegado, por lo que no es necesario eliminarlo.
Eliminamos el Service Mesh Control Plane
Ya podemos borrar el control plane del Service Mesh
1
2
3
4
5
6
| $ oc get smcp -n istio-system
NAME READY STATUS PROFILES VERSION AGE
basic 9/9 ComponentsReady ["default"] 2.0.8 225d
$ oc delete smcp basic -n istio-system
servicemeshcontrolplane.maistra.io/basic deleted
|
Veremos como los pods comenzarán a ser eliminados.
1
2
3
4
5
6
7
8
9
10
11
12
| $ oc get po -n istio-system
NAME READY STATUS RESTARTS AGE
grafana-f8bcf4656-bllgt 0/2 Terminating 0 19m
istio-egressgateway-7bd88577bd-wknxv 1/1 Terminating 0 19m
istio-ingressgateway-b5d4b99cc-vsxlg 1/1 Terminating 0 19m
istiod-basic-6985d799ff-ppfq6 0/1 Terminating 0 19m
jaeger-6dd96f99d4-bl5jz 0/2 Terminating 0 19m
kiali-64ff6dbc65-whhbq 1/1 Running 0 19m
prometheus-6588f6bb9f-7vz5s 3/3 Terminating 0 19m
$ oc get scmp
error: the server doesn't have a resource type "scmp"
|
Borramos Kiali
Eliminamos la instancia de Kiali.
1
2
3
4
5
6
7
8
9
10
11
12
13
| $ oc get po -n istio-system
NAME READY STATUS RESTARTS AGE
kiali-64ff6dbc65-whhbq 1/1 Running 0 20m
$ oc get kiali -n istio-system
NAME AGE
kiali 225d
$ oc delete kiali kiali -n istio-system
kiali.kiali.io "kiali" deleted
$ oc get kiali -n istio-system
error: the server doesn't have a resource type "kiali"
|
Veremos como los pods comenzarán a ser eliminados.
1
2
3
| $ oc get po -n istio-system
NAME READY STATUS RESTARTS AGE
kiali-64ff6dbc65-whhbq 0/1 Terminating 0 22m
|
Eliminamos el proyecto de Istio
1
2
| $ oc delete project istio-system
project.project.openshift.io "istio-system" deleted
|
Eliminamos el proyecto de Jaeger
1
2
| $ oc delete project openshift-distributed-tracing
project.project.openshift.io "openshift-distributed-tracing" deleted
|
Borramos los CRDs de Maistra
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| $ oc get crds -o name | grep '.*\.maistra\.io'
customresourcedefinition.apiextensions.k8s.io/servicemeshcontrolplanes.maistra.io
customresourcedefinition.apiextensions.k8s.io/servicemeshextensions.maistra.io
customresourcedefinition.apiextensions.k8s.io/servicemeshmemberrolls.maistra.io
customresourcedefinition.apiextensions.k8s.io/servicemeshmembers.maistra.io
customresourcedefinition.apiextensions.k8s.io/servicemeshpolicies.authentication.maistra.io
customresourcedefinition.apiextensions.k8s.io/servicemeshrbacconfigs.rbac.maistra.io
$ oc get crds -o name | grep '.*\.maistra\.io' | xargs -r -n 1 oc delete
customresourcedefinition.apiextensions.k8s.io "servicemeshcontrolplanes.maistra.io" deleted
customresourcedefinition.apiextensions.k8s.io "servicemeshextensions.maistra.io" deleted
customresourcedefinition.apiextensions.k8s.io "servicemeshmemberrolls.maistra.io" deleted
customresourcedefinition.apiextensions.k8s.io "servicemeshmembers.maistra.io" deleted
customresourcedefinition.apiextensions.k8s.io "servicemeshpolicies.authentication.maistra.io" deleted
customresourcedefinition.apiextensions.k8s.io "servicemeshrbacconfigs.rbac.maistra.io" deleted
|
Borramos los CRDs asociados a Kiali
1
2
3
4
5
6
7
| $ oc get crds -o name | grep '.*\.kiali\.io'
customresourcedefinition.apiextensions.k8s.io/kialis.kiali.io
customresourcedefinition.apiextensions.k8s.io/monitoringdashboards.monitoring.kiali.io
$ oc get crds -o name | grep '.*\.kiali\.io' | xargs -r -n 1 oc delete
customresourcedefinition.apiextensions.k8s.io "kialis.kiali.io" deleted
customresourcedefinition.apiextensions.k8s.io "monitoringdashboards.monitoring.kiali.io" deleted
|
Borramos los CRDs asociados a Jaeger
1
2
3
4
5
6
| $ oc get crds jaegers.jaegertracing.io
NAME CREATED AT
jaegers.jaegertracing.io 2022-07-25T14:41:12Z
$ oc delete crds jaegers.jaegertracing.io
customresourcedefinition.apiextensions.k8s.io "jaegers.jaegertracing.io" deleted
|
Eliminamos los ConfigMaps del Mesh y la Service Account
1
2
3
4
5
6
7
8
9
10
11
12
| $ oc get cm -n openshift-operators
NAME DATA AGE
31e04290.jaegertracing.io 0 226d
istio-cni-config 4 226d
kube-root-ca.crt 1 253d
maistra-operator-cabundle 1 226d
openshift-service-ca.crt 1 253d
$ oc delete cm 31e04290.jaegertracing.io istio-cni-config maistra-operator-cabundle -n openshift-operators
configmap "31e04290.jaegertracing.io" deleted
configmap "istio-cni-config" deleted
configmap "maistra-operator-cabundle" deleted
|
1
2
3
4
5
6
7
8
9
| $ oc get sa -n openshift-operators
NAME SECRETS AGE
builder 2 253d
default 2 253d
deployer 2 253d
istio-cni 2 226d
$ oc delete sa istio-cni -n openshift-operators
serviceaccount "istio-cni" deleted
|
Y de esta forma conseguimos eliminar el stack de Service Mesh y todos los recursos asociados a su despliegue.
Todo este paso a paso es una depuración de la documentación oficial para eliminar el stack de Service Mesh, la cual es la siguiente para OpenShift 4.8
